Type SB3 Hydro-lock Sleeve

Description
Type SB3 Hydro-lock Sleeve
Product Description
Type SB3 hydro-lock sleeve is designed for interchangeable tool assembly, and is suitable for machines with a hexagonal spindle profile.
Max. Operation Speed: 9000 rpm.
Highlight Features
- Available with detachable transmission ring or non-detachable transmission ring and various bolt settings to match most machines in the market;
- Key dimensions (i.e., inner, outer diameter, and end face) are machined with a one-time grinding process to ensure extremely high clamping accuracy;
- Advanced surface nickel-plating prevents our products from corrosion and rust;
- Easy and quick pressurization with an Allen T wrench;
- The built-in scaled lock nuts enable easy and accurate tool adjustment and promote operation safety.

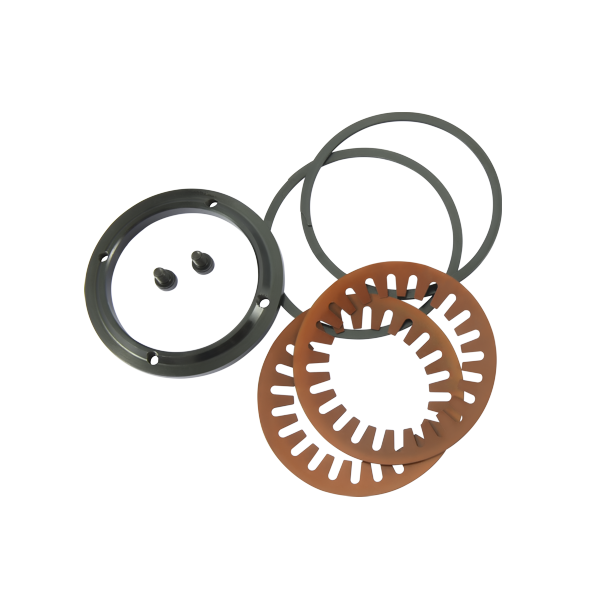

Accessories
Metric Adjustment Ring Ø93xd70x9
Metric Locking Ring Ø98xd88x2
Metric V-shape Spring Ø95xd62x4x0.9
Metric Internal Hexagonal Insert Ø46xL39.5
Type SB3 Hydro-lock Sleeve (mm)
Product | D | D1 | D2 | D3 | D4 | D5 | D6 | D7 | D9 | L | L1 | L2 | H | N | Qty | Quote |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sb3 40/60 x 96-7 | 40 | 60 | 120 | 104 | 75 | 14 | 9 | 100 | 63 | 96 | 58.5 | 68 | 11 | 6 |
